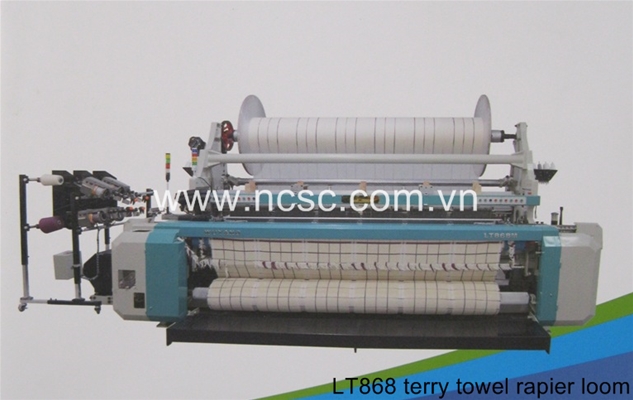

LT868 M high-speed terry towel rapier loom

Technical Parameter

Reed width :    230 / 260 / 280 / 300 cm

Adjustable width :   max. 75 cm

Yarn count     :    Cotton (1.5 ~ 120)Ne \ Polyester (20 ~ 1800)D

Fabric weight :   (30~ 800) g/m2

Speed  :     (300 ~ 400) rpm.  Design Speed : 400rpm ( for 230 cm)

Weft selection  :    8 color ; electronic color selector

Weft density range :  (2 ~ 200) picks /cm. Permit to input difference weft density procedures according to patterns .

Weft insertion :    driven by high precision conjugate cam, double hook insertion.

Beating up :        Separate sley driven by double side high precision conjugate cam

Shedding :          Electronic dobby 12/ 14 / 16 / 20 shaft (optional)

Let-off :                Electronic let-off by servo motor drive , bottom beam flange Ǿ 800mm ; up beam flange Ǿ1000mm electronic let-off by                                                sever motor.

Take-up :            Electronic take-up by servo motor drive; cloth roller Ǿ 550mm

Selvedge  :        Mechanical leno device , electronic leno device , hot melt cutting ( optional)

Filling control :    by high sensitive piezoelectric ceramic weft detector

Warp yarn control :   2 line split type contact stop motion

Lubrication :          Centralized pressure oil supply ; oil-bath lubrication

Main drive :           3 phase motor 4kW; Sumo motor (optional)

Terry motion :        (1 ~ 15) cm servo terry motion ; terry high (1 ~ 15) mm
